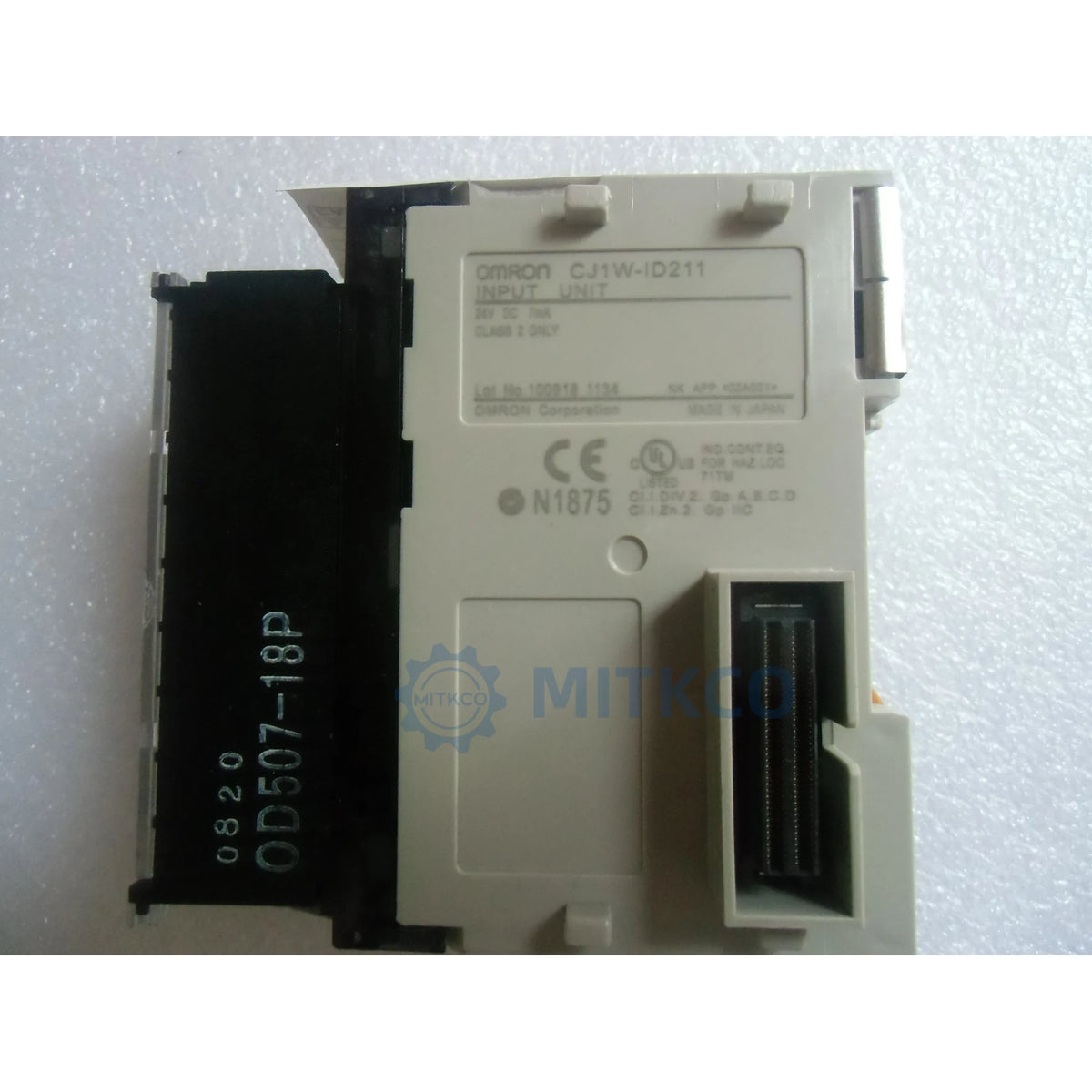

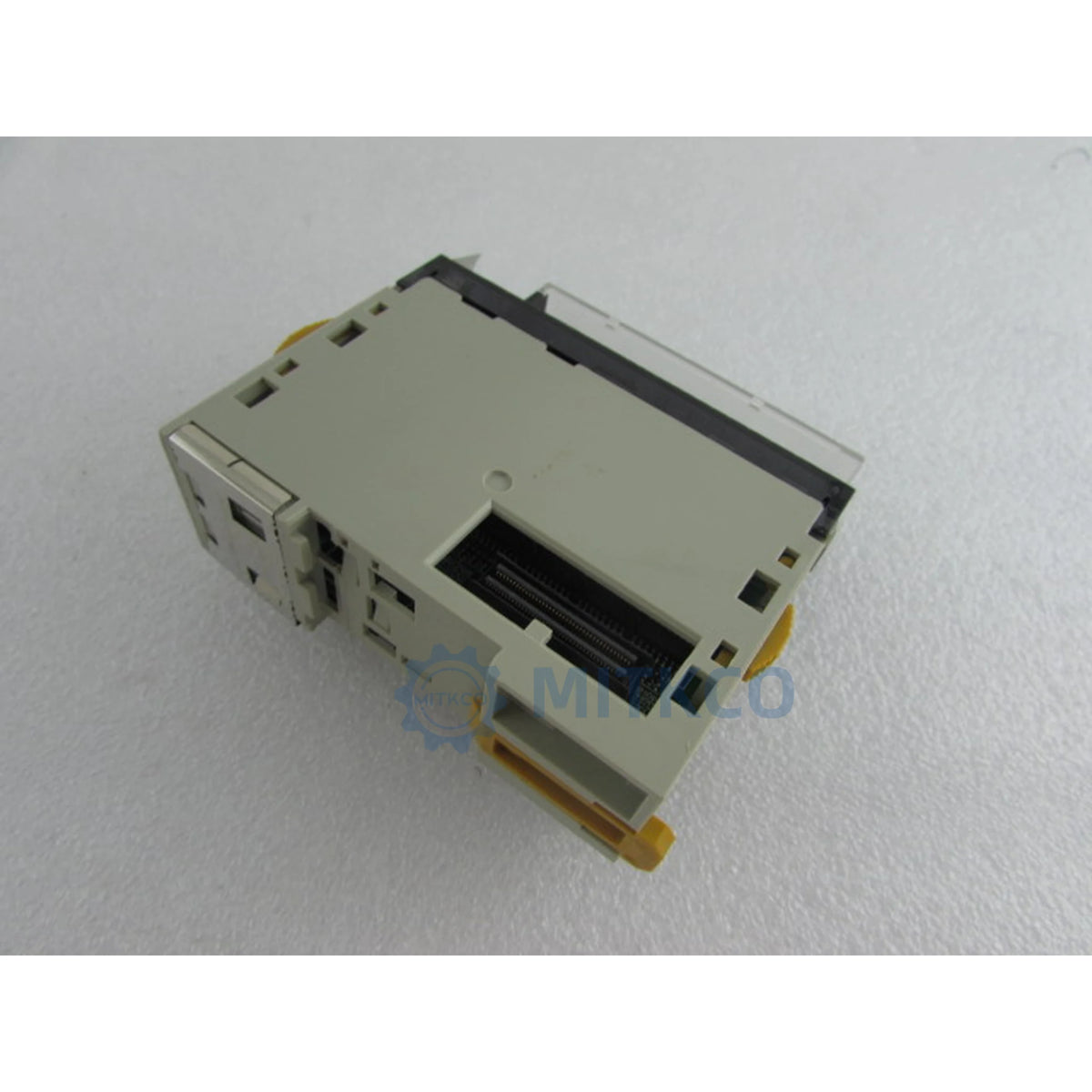

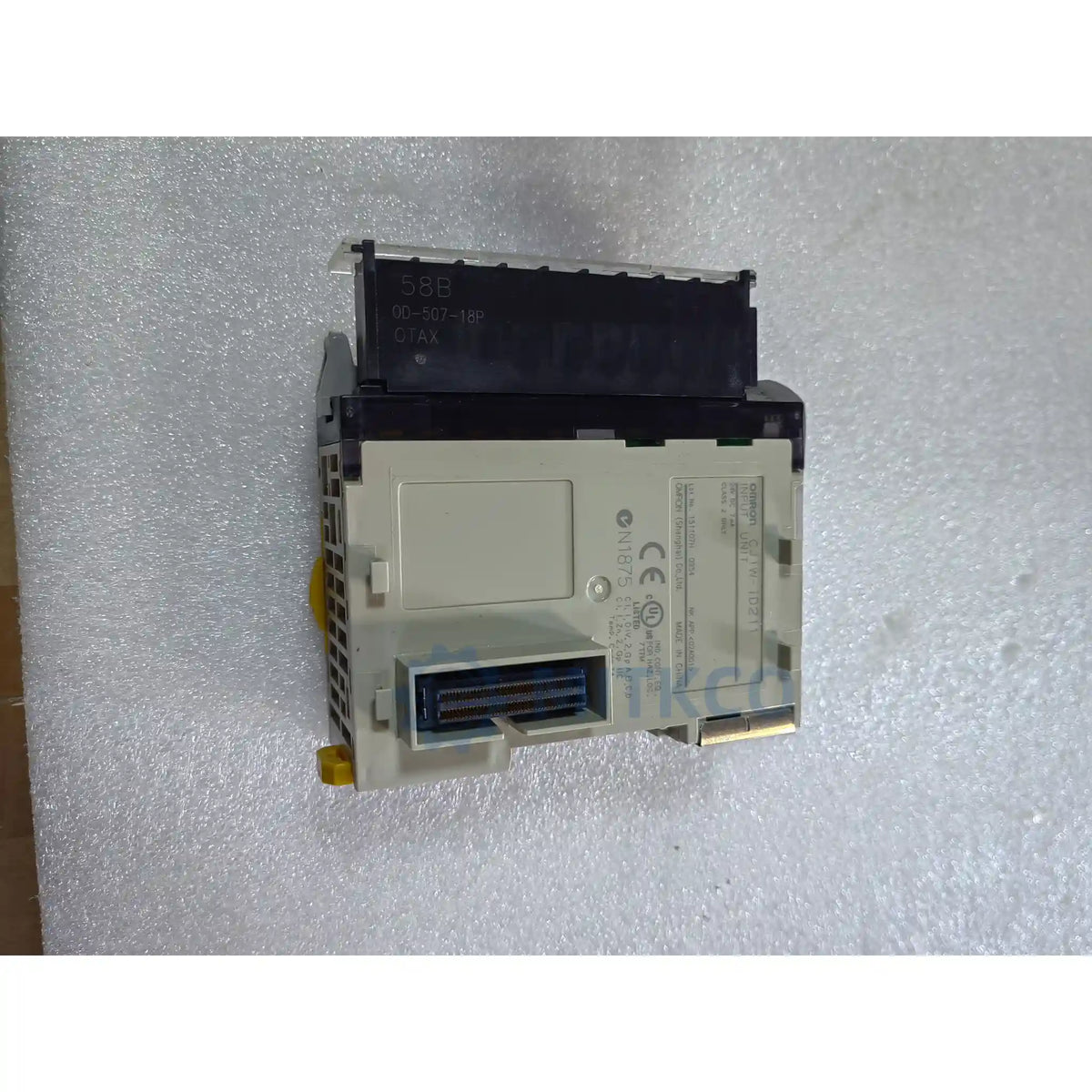

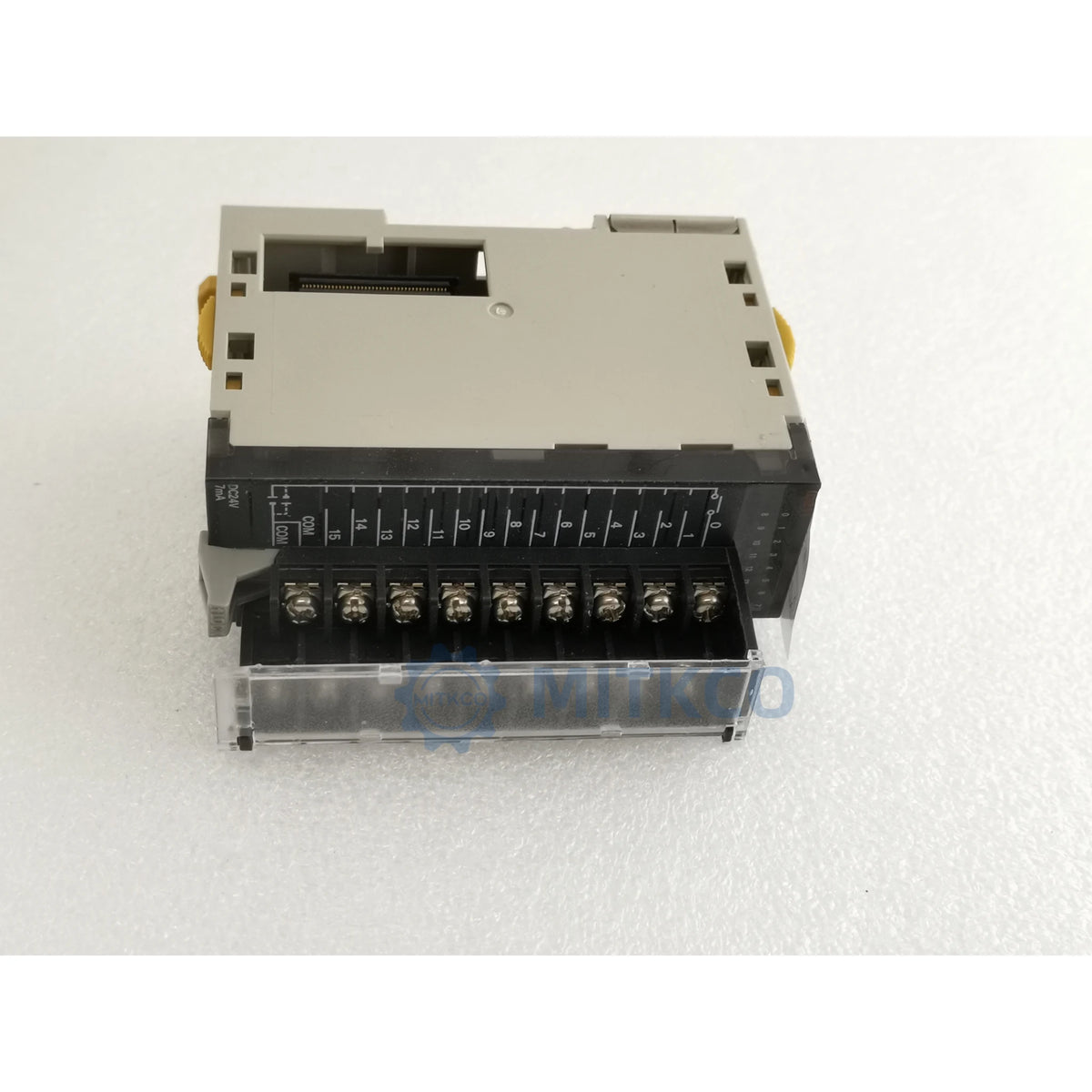

Name: CJ1W-ID211 OMRON CJ Series DC Input Unit 16-Point 24VDC
Brand: OMRON
SKU: CJ1W-ID211
Price: 60.01 USD
Availability: InStock

Roll over image to zoom in Click on image to zoom

Parameter	Specification
Manufacturer	OMRON
Series	CJ1W (CJ Series)
Device Type	DC Input Unit
Number of Inputs	16 points
Rated Input Voltage	DC 24 V
Rated Input Voltage Range	DC 20.4 to 26.4 V
Input Impedance	3.3 kΩ
Input Current	7 mA typical at 24 VDC
ON Voltage / ON Current	DC 14.4 V min. / 3 mA min.
OFF Voltage / OFF Current	DC 5 V max. / 1 mA max.
ON Response Time	8.0 ms or less (configurable 0 to 32 ms)
OFF Response Time	8.0 ms or less (configurable 0 to 32 ms)
Number of Circuits	16 points / 1 common
Simultaneously ON Points	100% simultaneous ON (DC 24 V)
Insulation Resistance	20 MΩ min. (external terminal to GR terminal, at DC 100 V)
Dielectric Strength	AC 1,000 V for 1 min., leakage current 10 mA max.
Internal Current Consumption	80 mA max.
Weight	110 g max.
Applications	Industrial signal acquisition; machine control; CJ-series PLC input expansion
