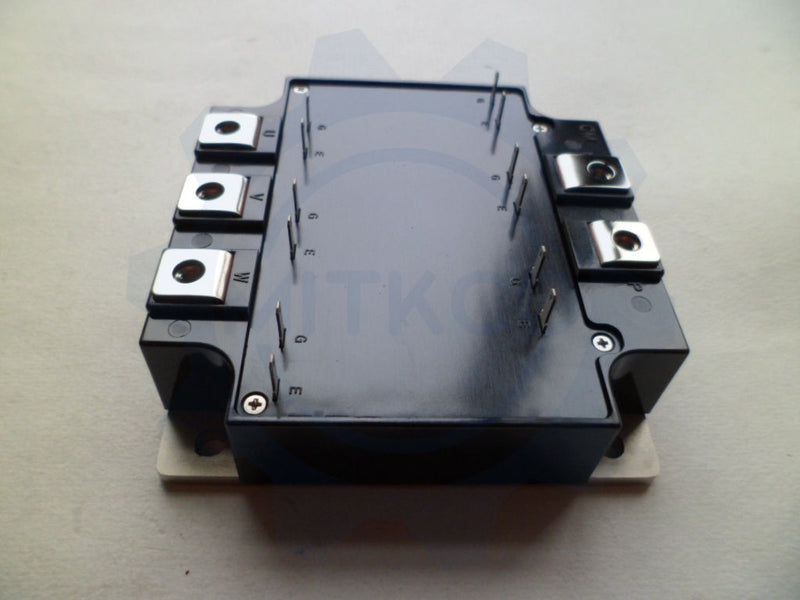

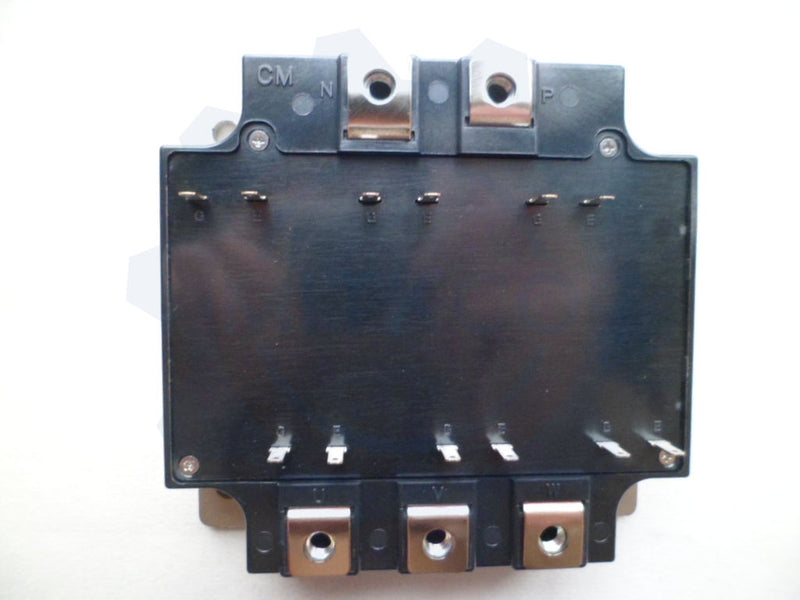

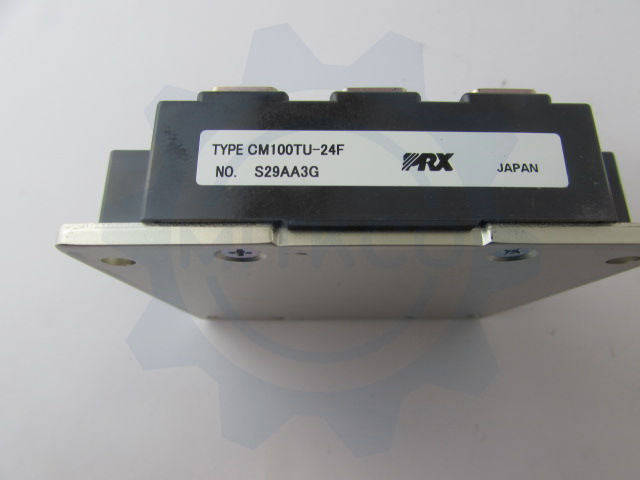

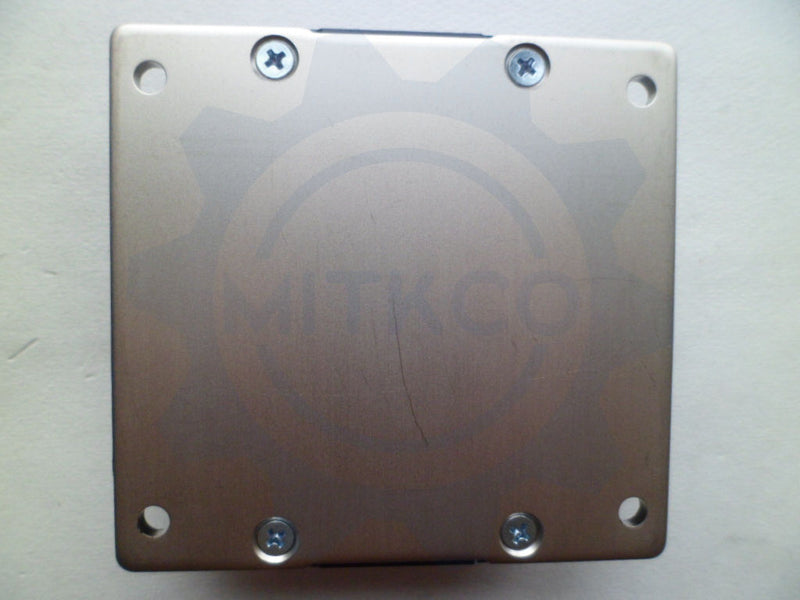

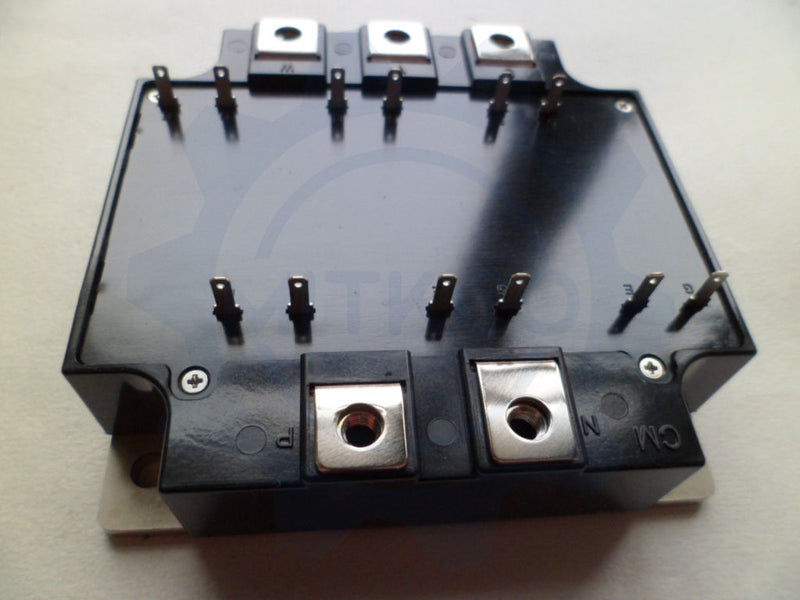

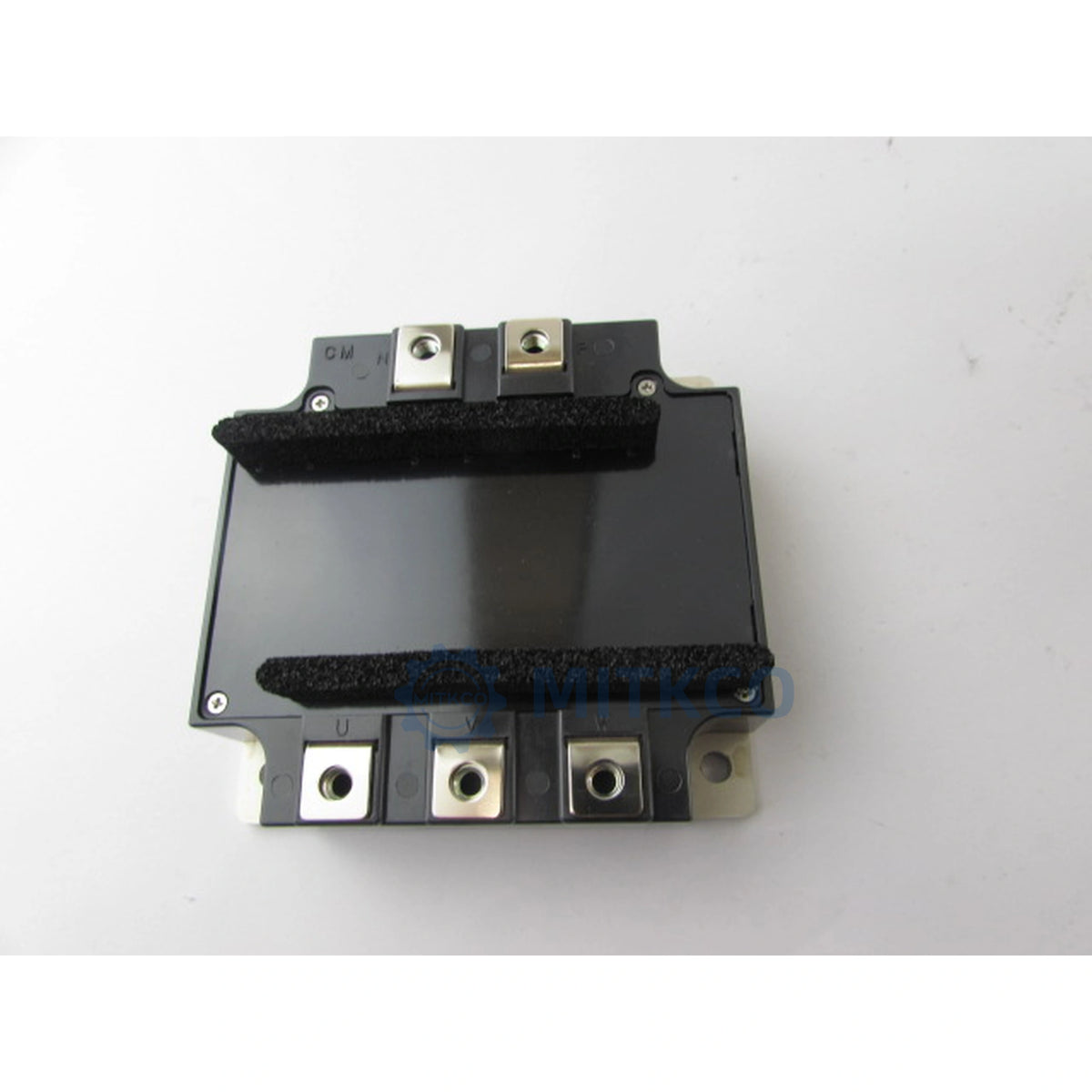

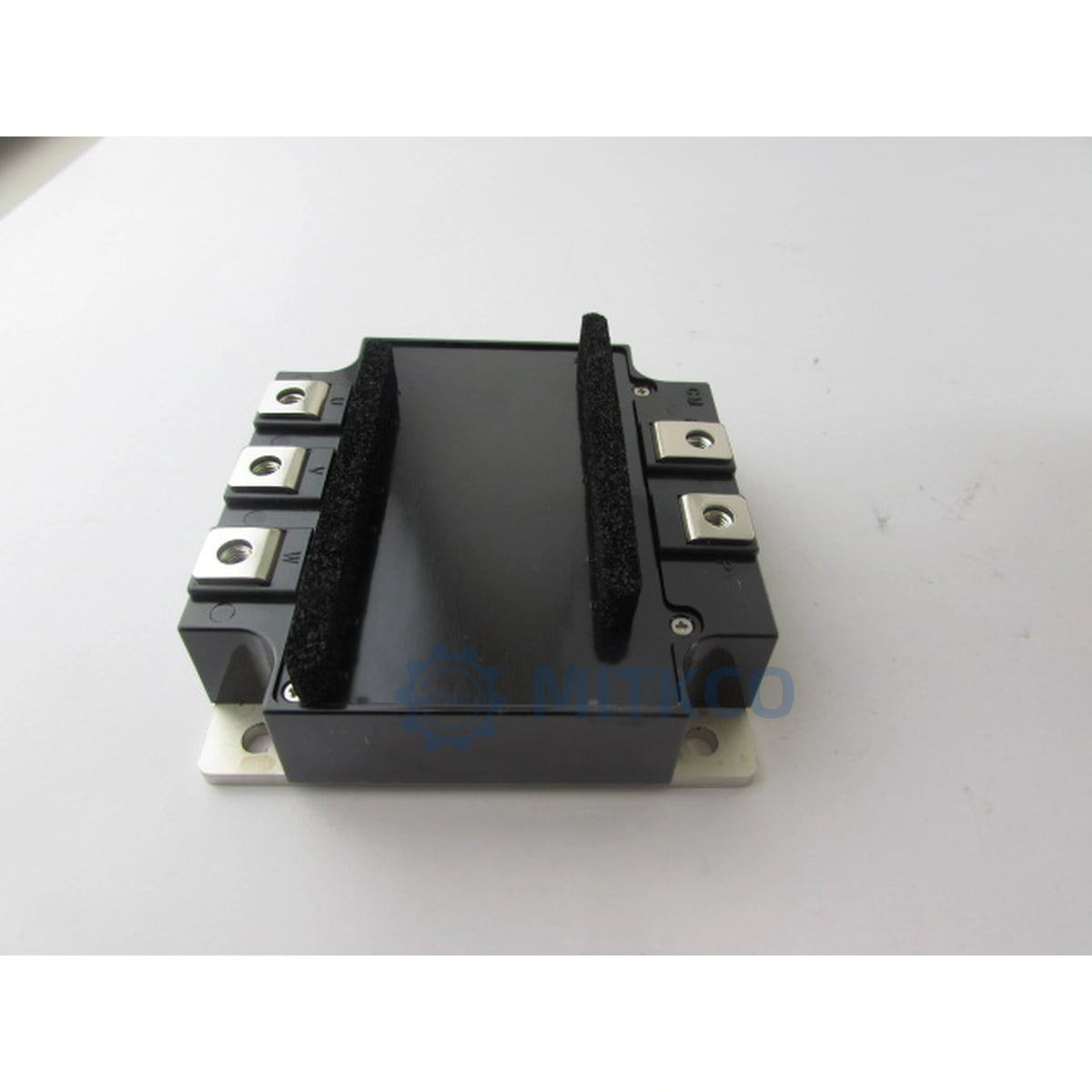

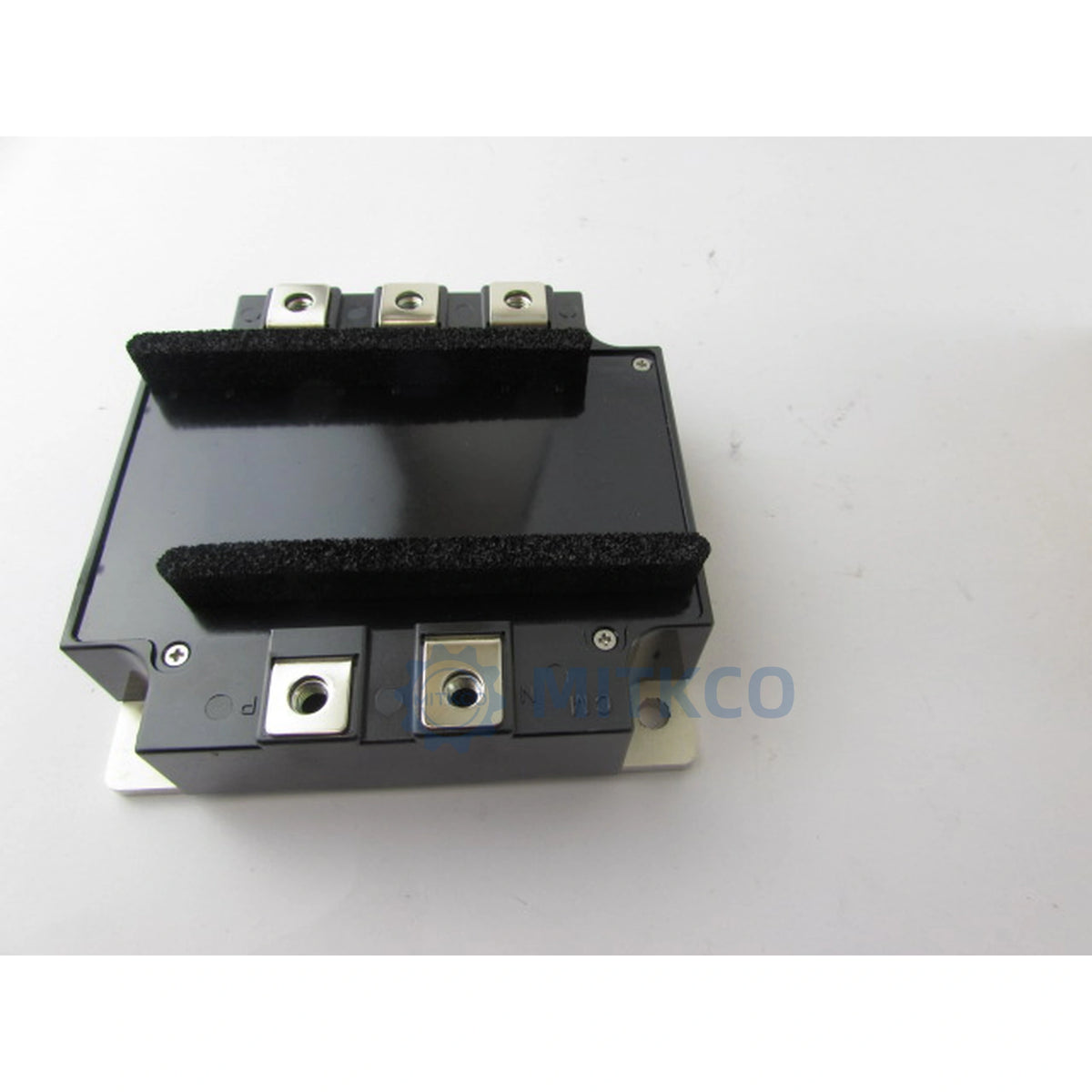

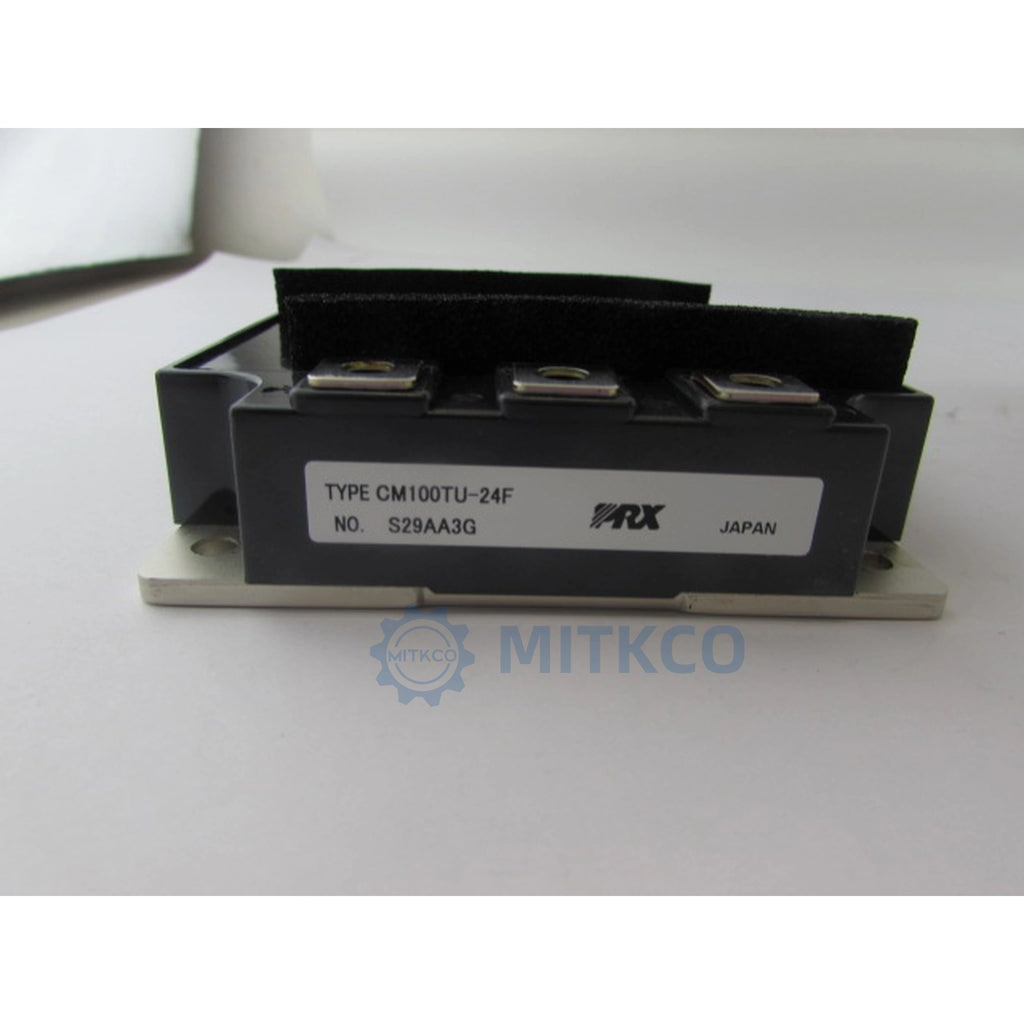

CM100TU-24F Mitsubishi 100A 1200V IGBT Module Three-Phase Inverter

Roll over image to zoom in Click on image to zoom

CM100TU-24F Mitsubishi 100A 1200V IGBT Module Three-Phase Inverter

Name: CM100TU-24F Mitsubishi 100A 1200V IGBT Module Three-Phase Inverter
Brand: Mitsubishi Electric
SKU: CM100TU-24F
Price: 252.36 USD
Availability: InStock

Mitsubishi ElectricSKU: CM100TU-24F

Price:

$252.36 $273.39

Quantity:

✅ Genuine, verified
🚚 Ships within 1-2 business days
🌍 Ships to 40+ countries

Share this product

Parameter	Specification
Manufacturer	Mitsubishi Electric / Powerex
Series	IGBTMOD™
Device Type	IGBT Module (Trench Gate Design)
Configuration	Three-Phase Inverter Bridge, 6 Elements with Built-in Diode
Collector-Emitter Voltage (VCES)	1200 V
Continuous Collector Current (IC)	100 A
Collector-Emitter Saturation Voltage (VCE(sat))	2.4 V @ 15V, 100A
Maximum Power Dissipation	500 W
Gate-Emitter Voltage (VGES)	±20 V
Input Capacitance (Cies)	39 nF @ 10 V
Isolation Voltage	2500 V AC
Operating Junction Temperature (Tj)	-40°C to +150°C
Mounting	Chassis Mount
Package	Module (Plastic Encapsulated)
Features	Trench gate design; super-fast recovery free-wheel diode; low saturation voltage
Applications	Three-phase inverter; motor drive; industrial power conversion
