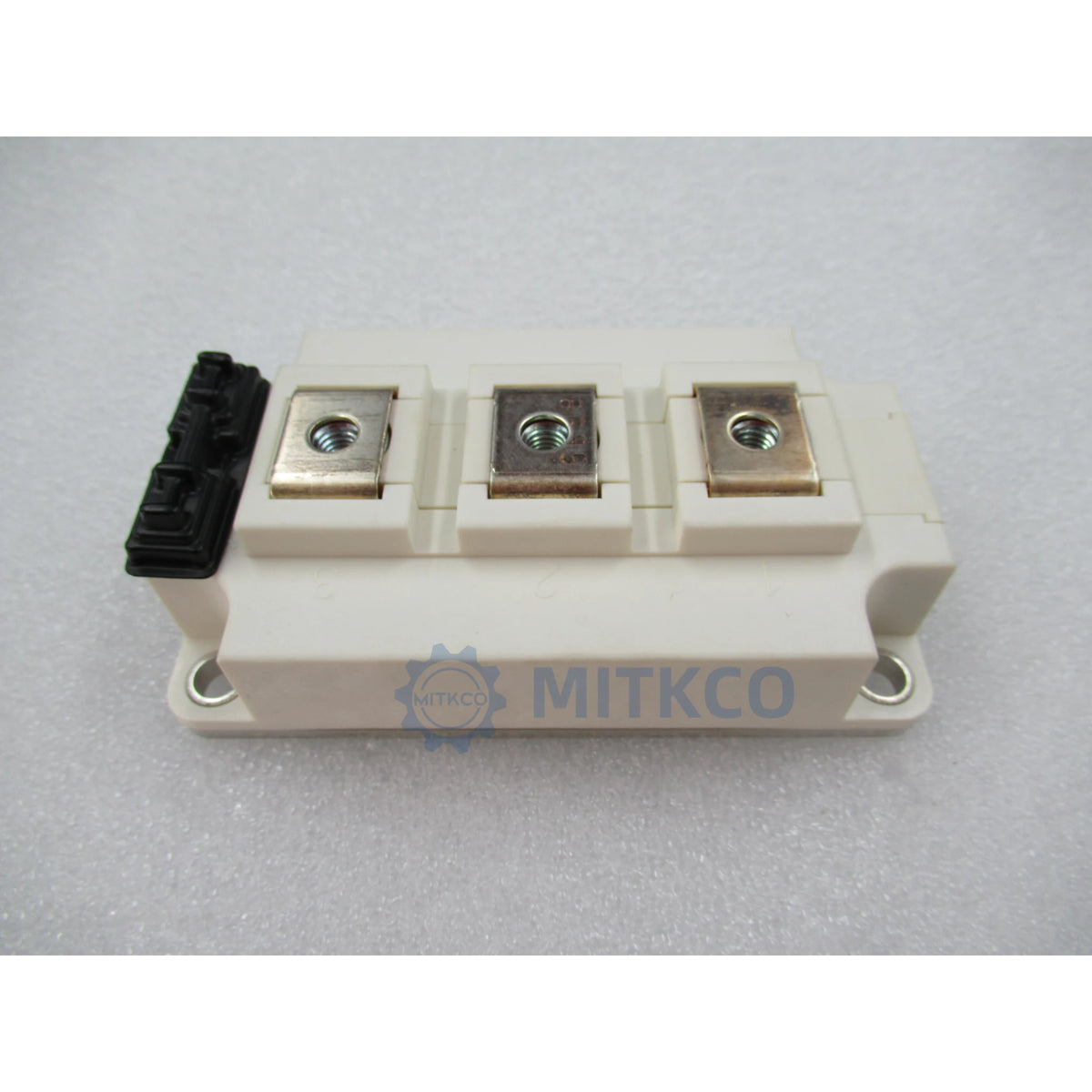

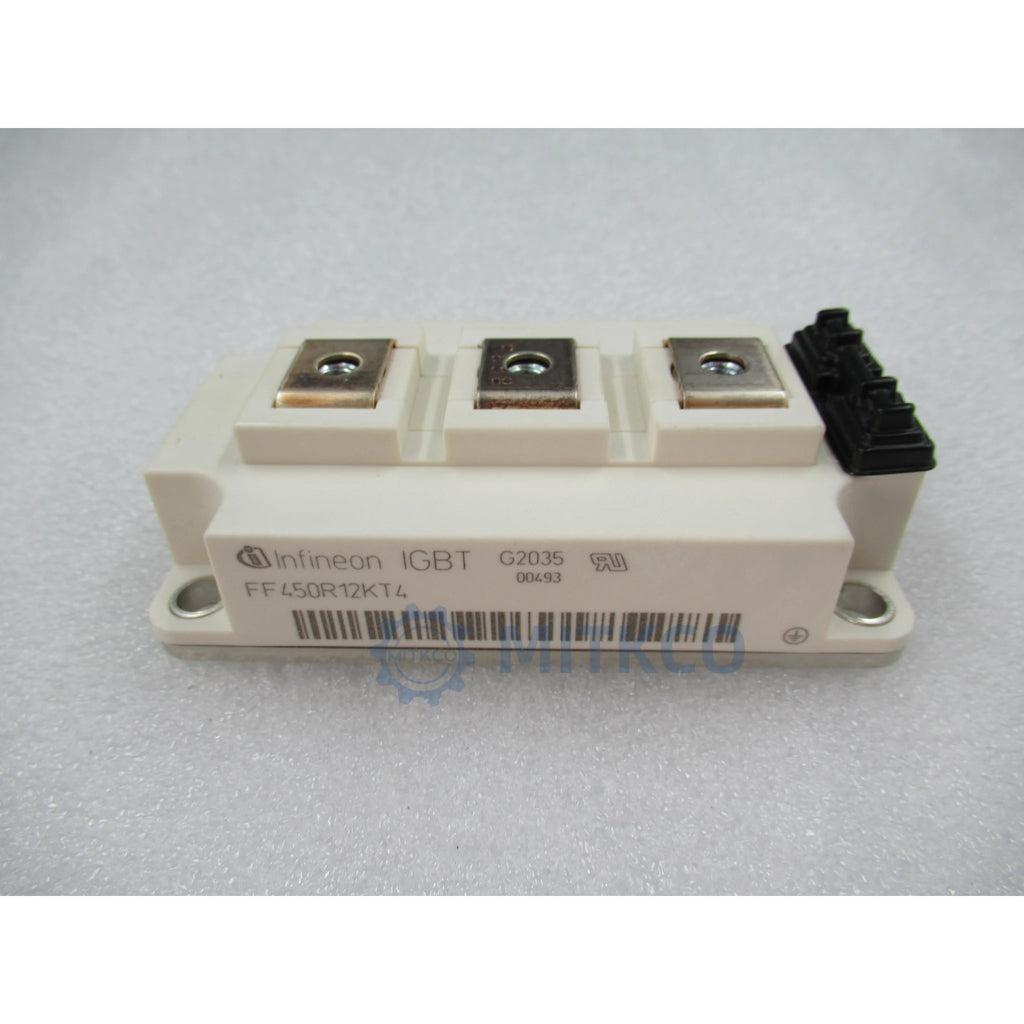

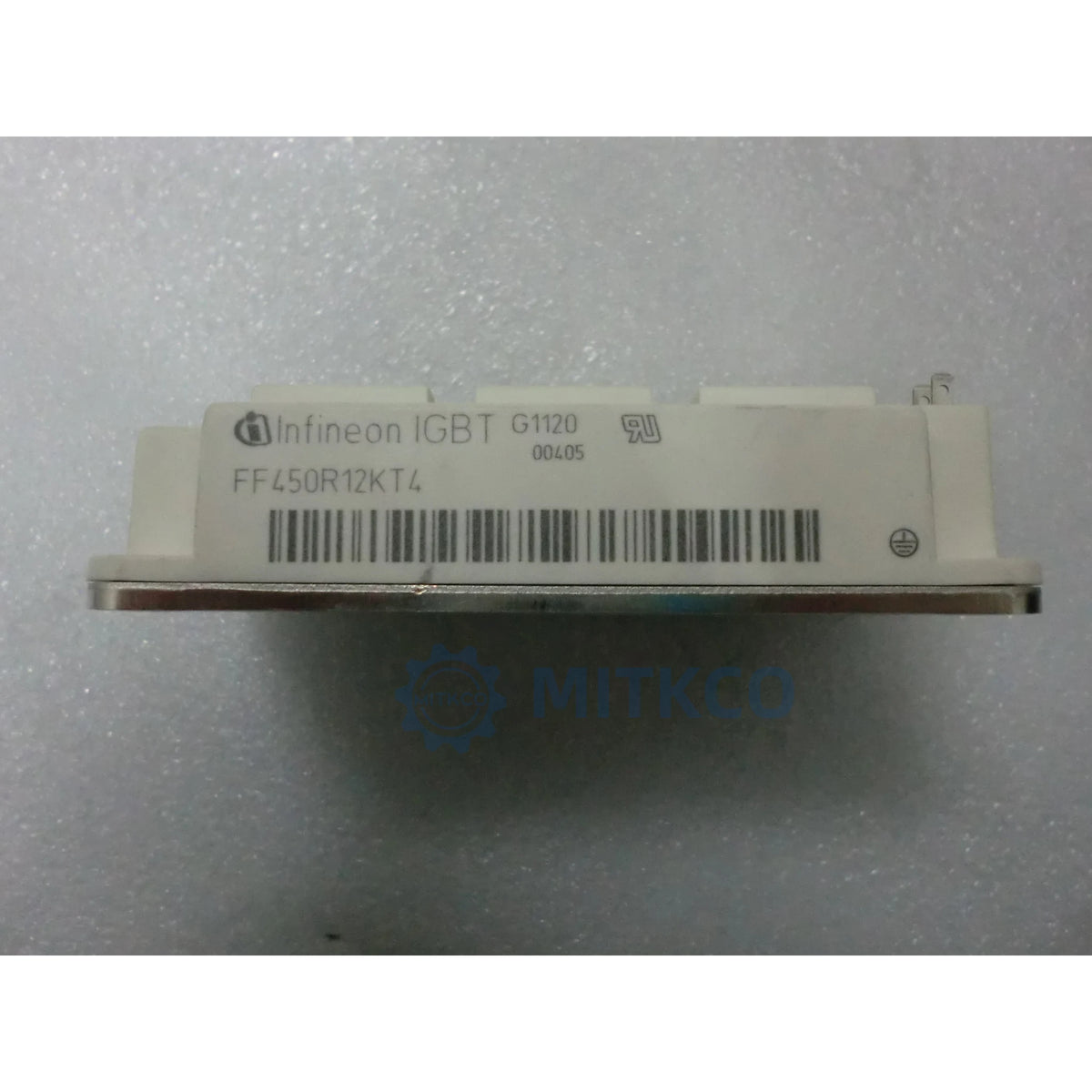

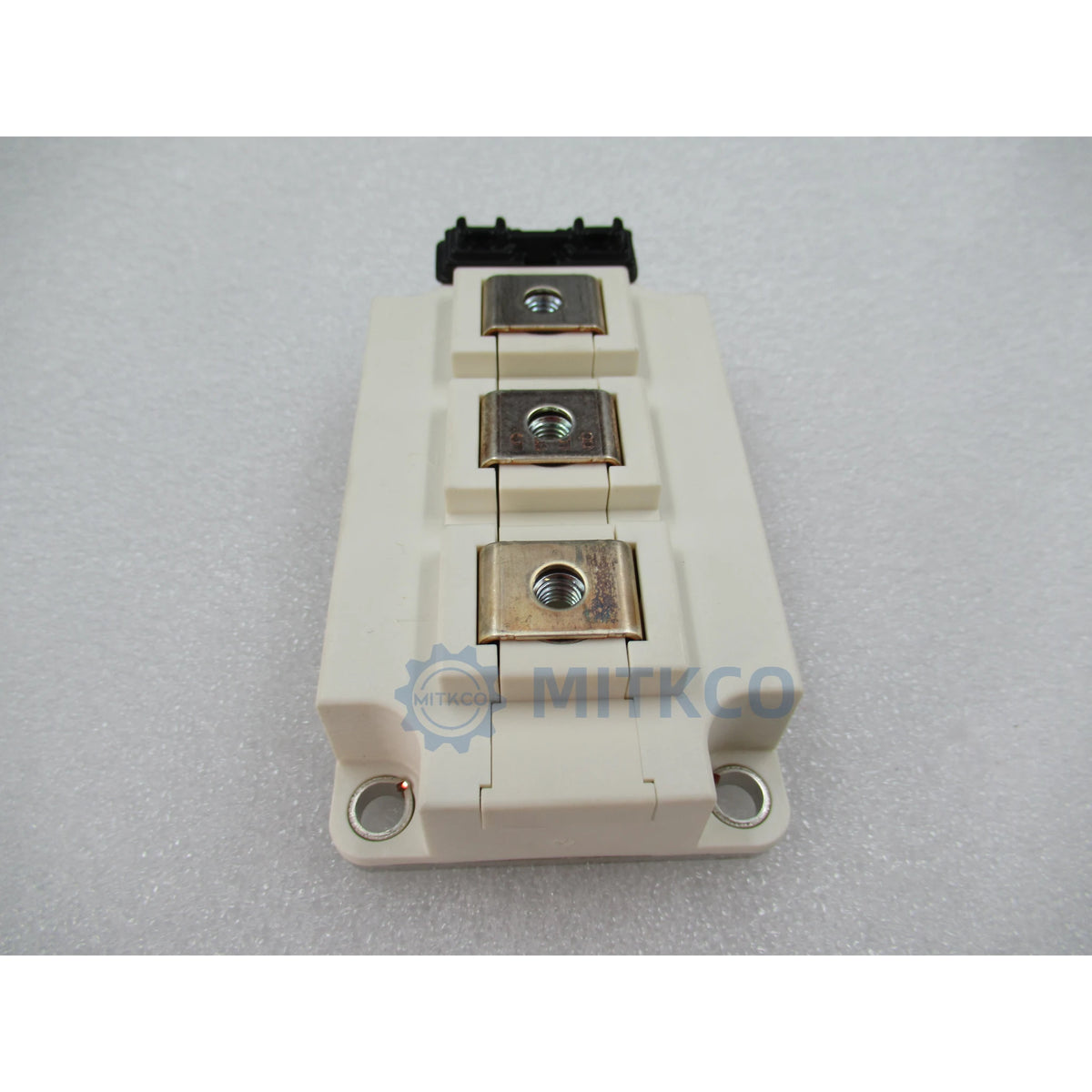

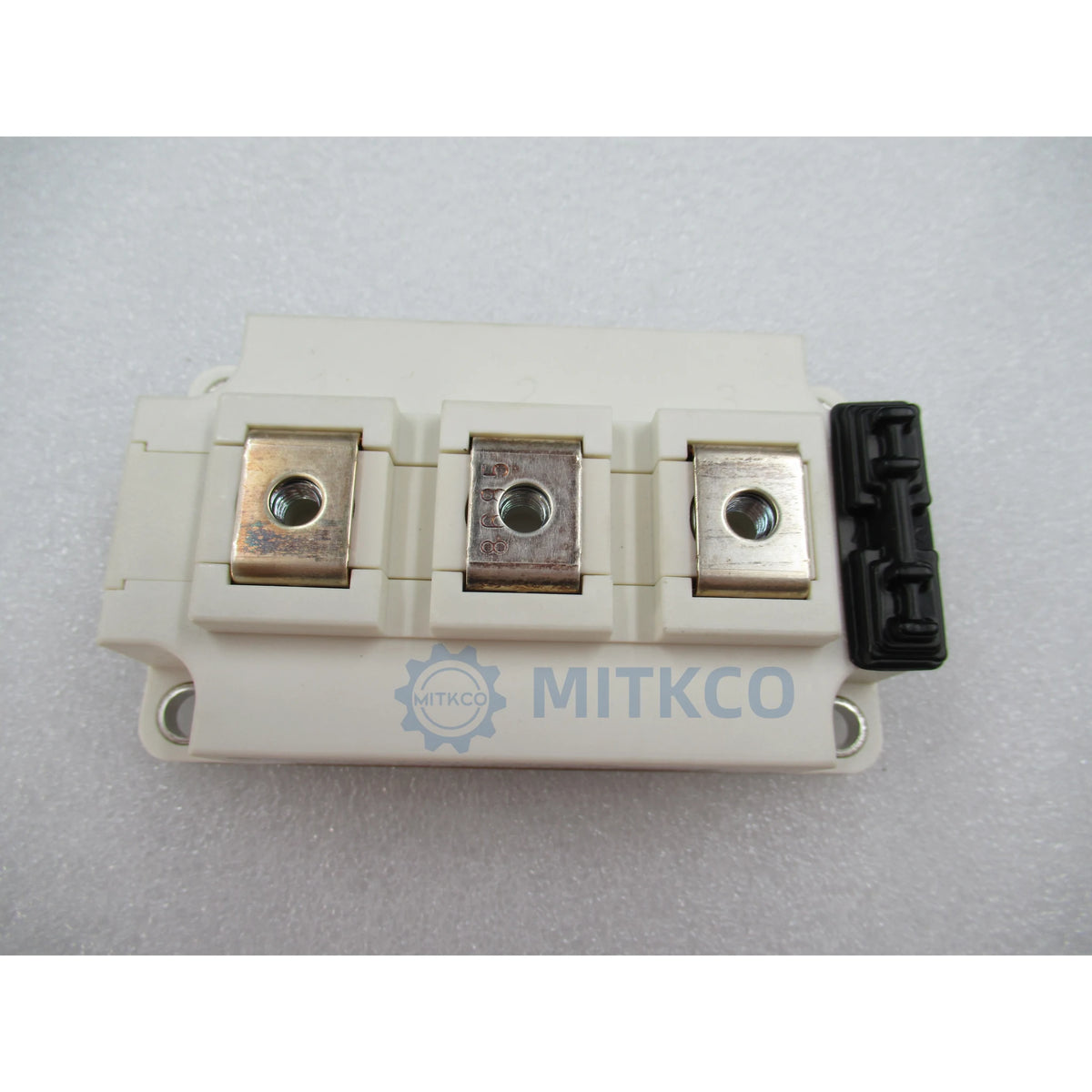

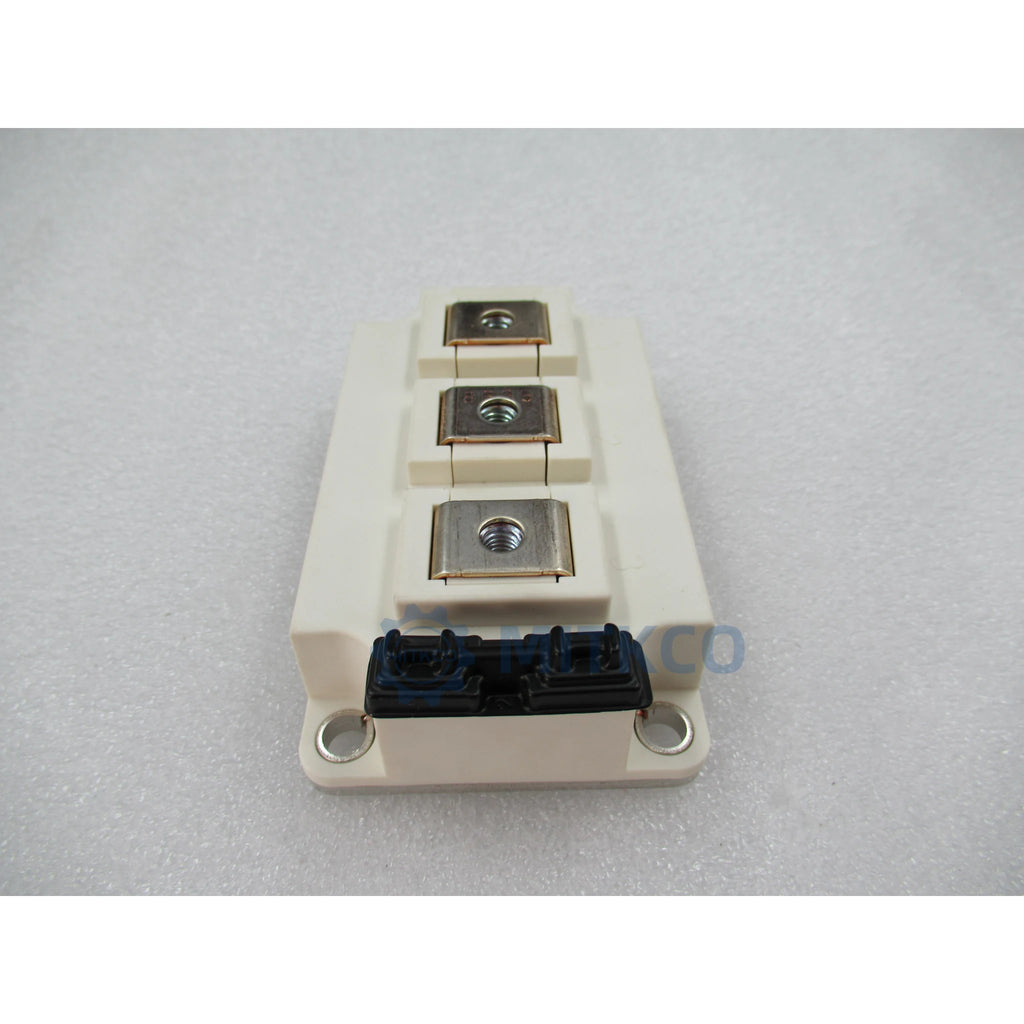

FF450R12KT4 Infineon 450A 1200V IGBT Module 62mm C-Series

Roll over image to zoom in Click on image to zoom

FF450R12KT4 Infineon 450A 1200V IGBT Module 62mm C-Series

Name: FF450R12KT4 Infineon 450A 1200V IGBT Module 62mm C-Series
Brand: Infineon Technologies
SKU: FF450R12KT4
Price: 90.60 USD
Availability: InStock

Infineon TechnologiesSKU: FF450R12KT4

Price:

$90.60 $98.15

Quantity:

✅ Genuine, verified
🚚 Ships within 1-2 business days
🌍 Ships to 40+ countries

Share this product

Parameter	Specification
Manufacturer	Infineon Technologies
Series	62mm C-Series
Device Type	IGBT Module (Dual / Half-Bridge)
Configuration	Dual (Half-Bridge)
Collector-Emitter Voltage (VCES)	1200 V
Continuous DC Collector Current (ICnom)	450 A (TH=70°C, Tvj max=175°C)
Maximum Collector Current (IC max)	580 A
Repetitive Peak Collector Current (ICRM)	900 A (tp=1ms)
Collector-Emitter Saturation Voltage (VCE(sat))	1.75 V (typical); 2.15 V @ 450A, 15V
Gate-Emitter Voltage (VGES)	±20 V
Power Dissipation	2.4 kW
Turn-On Delay Time (td(on))	160 ns
Turn-Off Delay Time (td(off))	450 ns
Turn-On Energy (Eon)	19 mJ
Turn-Off Energy (Eoff)	26 mJ
Input Capacitance (Cies)	28 nF
Gate Charge (Qg)	3.6 µC @ 15V
Gate-Emitter Threshold Voltage (VGE(th))	5.2 V @ 17.0mA
IGBT Technology	IGBT4 (Trench/Field Stop)
Operating Temperature	-40°C to +150°C
Package	62 mm module, chassis mount
Features	Fast Trench/Fieldstop IGBT4; Emitter Controlled HE diode; pre-applied thermal interface material; low VCEsat; low switching losses; unbeatable robustness
Applications	High power converters; motor drives; UPS systems; wind turbines
